VHF Mobile Antennas

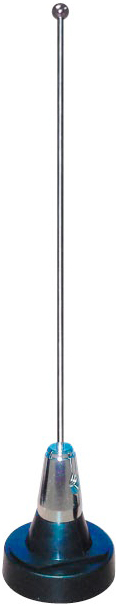

Field Tunable Antenna

Model: 18-302 VHF
1/4 Wave Unity Gain Field Tunable

Features

• Covers 136 - 900 MHz
• All stainless steel 17-7 radiator
• Chrome plated over brass ferrule
• Fits 3/4 “NMO” style mounts
• 24 Kt gold plated spring loaded contact

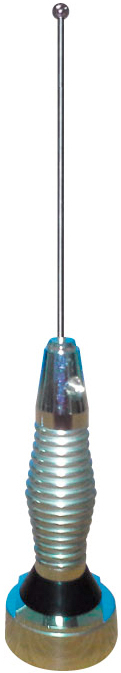

Wide Band Antenna

Model: 18-306 VHF
Wideband Unity Gain

Features

• 1/4 wave
• Covers 136-540 MHz
• 25 MHz bandwidth
• Solid 17-7 linear radiator w/ corona suppression
• 24 Kt gold plated spring loaded connector
• Stainless steel shock spring supplied
• Max total length 22”

Wide Band Antenna

Model: 18-148 VHF
Wide Band 1/2 Wave, No Ground Plane Antenna

Features

• Covers 136-174 MHz
• 24 MHz Bandwidth
• 100 Watt power capacity
• Fits NMO mount
• 2.5 dBi gain
• VSWR less than 2.0:1

No Ground Plane Antenna

Model: 18-148-WB Wide Band VHF

Features

• Gold Plated Push Pin Contact
• 17-7ph Stainless Tapered Whip
• 200 Watts Power Rating
• VSWR 1.2:1 Max @Tuned
• 136-174 MHz
• 30MHz Bandwidth
• 6/8 Wave w/C Load
• No Ground Plane
• 4.1 dBd Gain
• No Tuning

Field Tunable Antenna NMO Brass Nut Type

Model: 18NMOQT136 VHF
1/4 Wave Unity Gain Field Tunable

Features

• Covers 136-174 MHz
• Low Porfile Wide Band
• Gold Plated Push Pin Contact
• Fits 3/4 NMO style mounts
• Wip Length 511x1.56 m/m

NMO Mount Antenna

Model: 18-342 VHF
Heavy Duty 3/4 NMO Style

Features

• Covers 136-175 MHz
• 5/8 wave 3dBi

• New die cast chrome coil

• Heavy duty 52” 17-7 tapered stainless steel whip

• Chrome plated brass ferrule

• Low loss dio-core NMO style mount with irradiated
  brass and 24kt gold connector

UHF Mobile Antennas

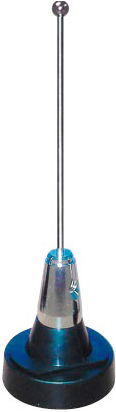

Field Tunable Antenna

Model: 18-302 UHF
1/4 Wave Unity Gain Field Tunable

Features

• Covers 136 - 900 MHz

• All stainless steel 17-7 radiator

• Chrome plated over brass ferrule

• Fits 3/4 “NMO” style mounts

• 24 Kt gold plated spring loaded contact

Multi-band Pre-tuned NMO Gain Antenna

Model: 18-TM136, 18-TM137

Features

• Heavy duty and high performance design
• No tune, broad band, multiband coverage
• Solid aluminum housing with black powder coating
• Injection molded solid brass and high-impact ABS base
• Stainless steel spring with black chrome plated
• Black chrome plated 17-7 ph stainless steel whip
• Frequency range: 136-174, 380-520, 698-960 MHz
• VSWR: < 2.0:1
• Power capacity: 160 watts
• Radiator housing : Black solid aluminum
• Gain: 136-174: Unit., 380-520: 3dB, 698-960: 5dB

Pre Tuned Antenna NMO Brass Nut Type

Model: 18-NMOQ-410 UHF
1/4 Wave Unity Gain

Features

• Covers 410-490 MHz
• Low Profile Wide Band
• Gold Plated Push Pin Contact
• Fits 3/4 NMO Style Mounts
• Wip Length 154x1.56 m/m

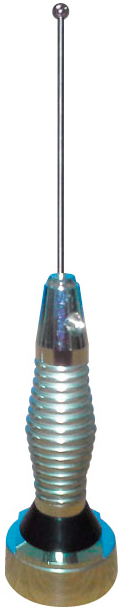

Wide Band Antenna

Model: 18-306 UHF
Wideband Unity Gain

Features

• 1/4 wave

• Covers 136-540 MHz

• 30 MHz bandwidth

• Solid 17-7 linear radiator w/ corona suppression

• 24 Kt gold plated spring loaded connector

• Stainless steel shock spring supplied

• Max total length 22”

No Ground Plane Antenna

Model: 18-4502 (450-470 MHz) or 18-4062 (400-430 MHz)
No Ground Plane Antenna

Features

• Coverage: 18-4502: 450-470 MHz, 18-4062: 400-430 MHz
• 2.4 dBi
• 1/2 wave NMO style connector

No Ground Plane Antenna

Model: 18-4065 Low UHF
No Ground Plane Antenna

Features

• Coverage: 400-430 MHz
• 5 dBi
• Fits 5/8 wave NMO style connector

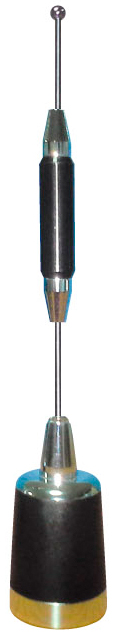

No Ground Plane Antenna

Model: 18-4505 UHF
No Ground Plane Antenna

Features

• 450-470 MHz coverage

• 5 dBi

• 5/8 wave NMO style connector

CB Antennas

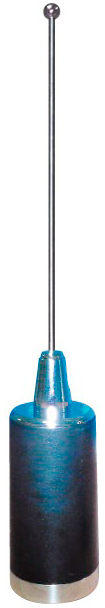

CB Antenna

Model: 18-353
High Efficiency CB Antenna

Features

• 49” 17-7 tapered stainless steel radiator

• High efficiency coil

• 3/4 NMO 24 Kt gold plated connector

• HDIE cast chrome, UV resistant housing

Antenna Mounts

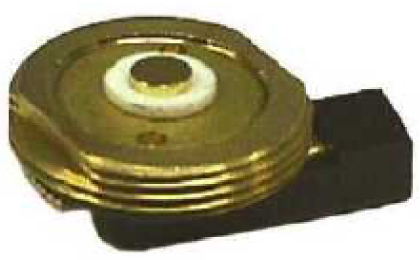

Hole Mounts

Model: 18-313
3/4” Hole Mount

Features

• 17’ of deluxe coaxial cable included

• Solid brass, NMO style mount w/ 24 Kt gold plated

• 1/2 wave NMO style connector

• Connectors sold separately

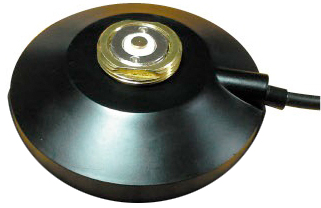

Magnet Mount

Model: 18-317
Deluxe 3/4” Magnet Mount

Features

• New rust-proof zinc housing in black

• 24 Kt gold plate connector

• New 8-pole magnet design for superior holding and capacity coupling

• Supplied with 17’ of deluxe coaxial cable

• Available with PL259/ or MPL/ or FME/ Connector

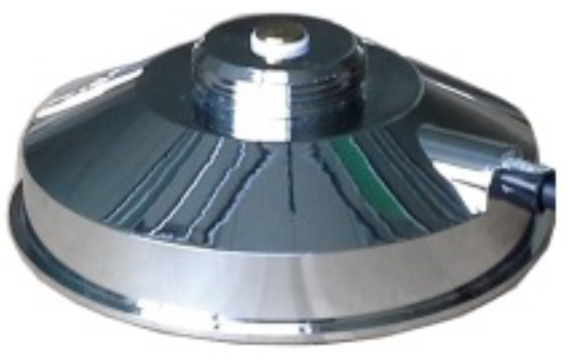

Magnet Mount

Model: 18-318
Deluxe 3/4” Magnet Mount

Features

• New rust-proof zinc housing with chrome plating
• 24 Kt gold plate connector

• New 8-pole magnet design for superior holding and capacity coupling

• Supplied with 17’ of deluxe coaxial cable

• Available with PL259/ or MPL/ or FME/ Connector

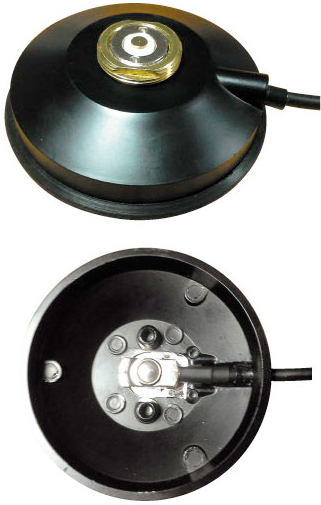

Magnet Mount

Model: 18-200
Rubber Boot Protected Magnet Mount

Features

• 3 5/8” zinc housing with 3/4” fully sealed NMO

• Rubber boot

• Color: black

• Connector: PL259

Magnet Mount

Model: 18-320N

• NMO Style Connector
• 17-FT RG58 Coax,with PL259 Connector
• 13 ounces powerfull magnet
• 5 inches hight impact plastic
• Rubber boot

Trunk Mount Mounting Kit

Model: 18-GL314NB
Black Trunk Mount Kit

• NMO Style Mounts
• 17-FT RG58 Coax with PL259 Connector
• Stainless steel bracket
• Fit up to 6 or 10 mm surface option

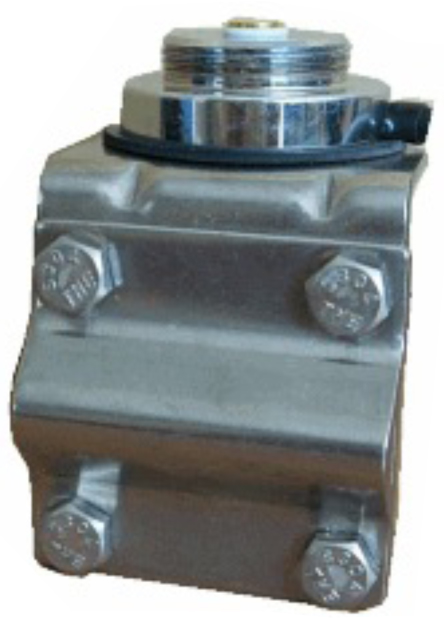

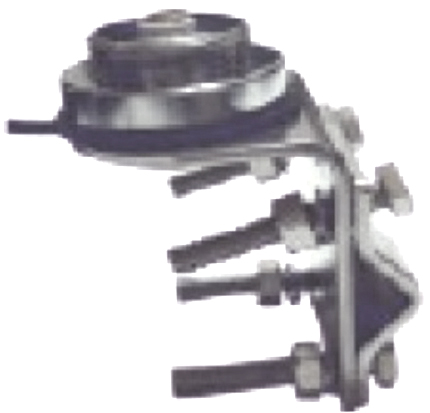

Mounting Bracket

Model: 18-RV4N
Mounting Braket

Features

• 1/8 “ thick stainless NMO mount

• 17’ RG 58 cable

• Connector PL259

Mirror Mount

Model: MM-17
Stainless Steel Mirror Mount for CB Antennas

Features

• Stainless steel mount and bolt

• 17 ft RG 58 A/U stranded coax w/ PL259

• 3/8”-24 thread stud for standard CB antenna

Base Station Antennas

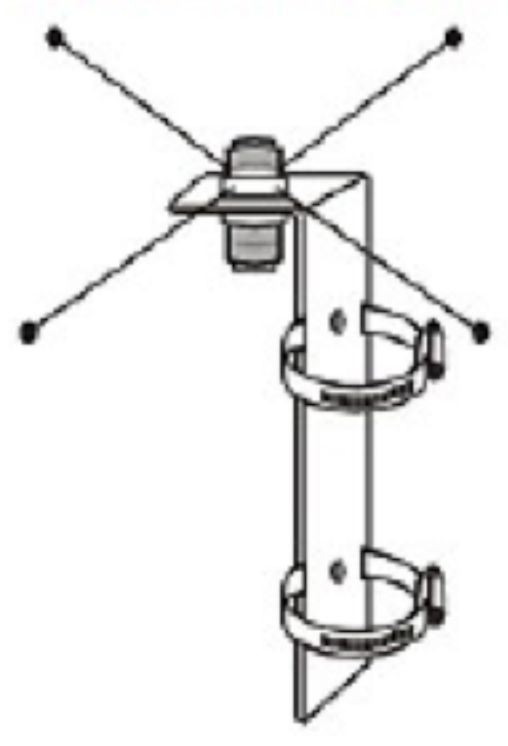

Base Station Antenna

Model: 18-GP
Base Station Ground Plane Kit

Features

• Includes mounting hardware and ground radials to make a mobile antenna into a ground plane base station

• 200 watts power rating

• 100 mph (48/sec) wind load

• Easy installation on any 2” pole or pipe

• 52 cm of radial length

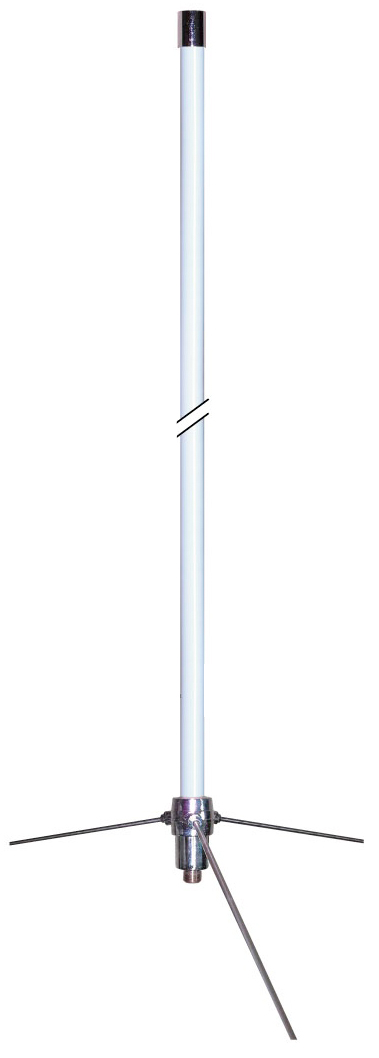

Commercial Station

Model: BF-134 VHF
High Performance Fiberglass Commercial Station Antenna

Specifications

• Frequency: 134-184 MHz w/ adjusting chart

• Gain: 4.5 dB

• VSWR: 1.5:1 or less

• Power rating: 200W

• Impedance: 50 ohm

• Type: 5/8 wave

• Polarization: vertical

• Connector: UHF female

• Length: 1.47m

• Radial length: 52cm

• Wind load: 60m/sec (135mph)

• Mast dia. accepted: 30-62 m/m
• DC ground: Yes

Commercial Station

Model: BF-406 UHF
High Performance Fiberglass Commercial Station Antenna

Specifications

• Frequency: 406-512 MHz w/ adjusting chart

• Gain: 6.5 dB

• VSWR: 1.5:1 or less

• Power rating: 200W

• Impedance: 50 ohm

• Type: 3x5/8 wave

• Polarization: vertical

• Connector: UHF female

• Length: 1.62m

• Radial length: 17cm

• Wind load: 60m/sec (135mph)

• Mast dia. accepted: 30-62 m/m
• DC ground: Yes

Antenna Components

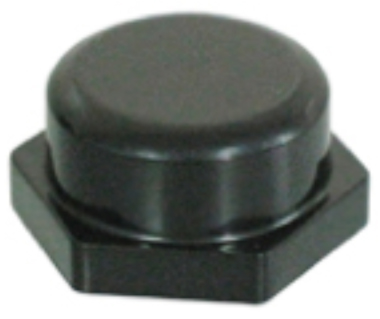

Model: 18-319

Rain / Water Protector Cover
Protects 18-813, 18-316, and
18-318 mount when whip is removed

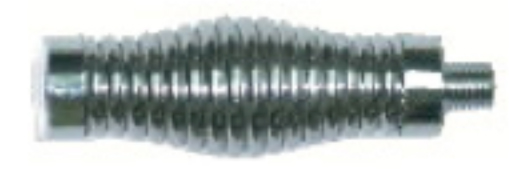

Model: 18-314

Relief Spring
For 18-300 series

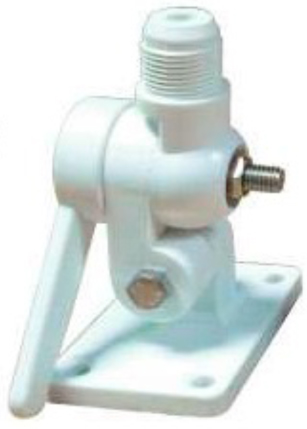

Model: RM-1

Nylon ratchet mount w/ 1”-14 thread

Model: 18-3120
3/4” NMO Mount

• Unit supplied without cable

• Irradiated brass construction

• 24 Kt gold plated connection tang and solder lug

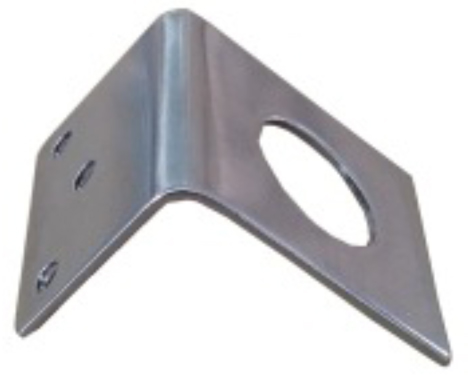

Model: 18-L

Stainless Steel L-style bracket for trunk or hood lip mount

Connectors

BNC
18-7001 BNC Male Crimp
18-7061 Double BNC Female

UHF
18-7501 UHF Male Crimp
18-7503 UHF Connector

Mini UHF
18-7001 BNC Male Crimp
18-7601 Mini UHF Male Crimp
18-7603 Mini UHF Female Crimp
18-7610 Mini UHF Male to Female
18-7614 Mini UHF Female to Male

TNC
18-7401 TNC Male crimp
18-7443 TNC Male to UHF Female

N Type
18-7301 N Male crimp
18-7329 N Male to UHF Male

SMA
18-7801 SMA Male crimp

FME
18-8004 FME Male to Mini UHF Male
